Barbed Wire Machine Solutions

In today’s fencing and security industries, barbed wire remains one of the most effective materials for perimeter protection, deterring unauthorized access, and enhancing safety in various environments. To meet the high demand for durable and efficiently produced barbed wire, RKM offers a range of Barbed Wire Machines designed to streamline production and provide flexibility for different project requirements. Our RKM Barbed Wire Machine Solutions ensure clients can find the ideal machine model tailored to their specific needs, with user-friendly designs and high-quality components.

This guide provides an in-depth look into RKM’s barbed wire machine models, highlighting key features, technical specifications, and unique advantages to assist you in making an informed choice for your barbed wire production needs.

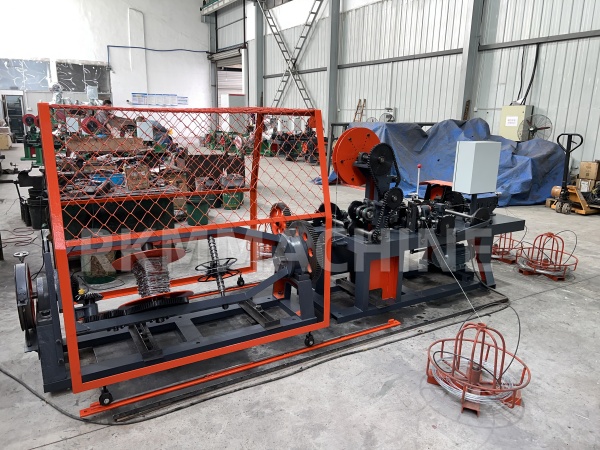

Barbed Wire Machines CS-ACS-A

Barbed Wire Machines CS-B

CS-B

Barbed Wire Machines CS-C

CS-C

Ⅰ. Machine Description

The RKM Barbed Wire Machine is designed to maximize productivity, safety, and ease of use. Below are the core features included across our machine models:

  1. Safety Steel Cover: A protective steel cover is installed over the driving shaft to ensure operator safety.

safety protection

safety protection

safety protection 2

safety protection 2

  1. Counter System: The machine includes a counter that accurately tracks the number of barbs, helping operators monitor and control the length of the finished barbed wire.

counter

counter 1

  1. Easy Roll Removal: The barbed wire roll is easy to remove from the machine, reducing downtime and simplifying operation.
  2. Guiding System: A specialized guiding system prevents wire snarls, ensuring a smooth production process.
  3. Adjustable Barbed Spacing: An integrated red roller allows operators to easily adjust barb spacing.
  4. Heavy-Duty Twisting and Cutting Components: Hard steel is used in the twisting and cutting mechanism, ensuring a durable, high-performance machine.

Additionally, both the barbed wire and main wire are fed from spools automatically. There are two options for the wire spools:

  • Option 1: Standard spools with a maximum load of 200 kg.
  • Option 2: Pull-up pay-off reel, capable of handling up to 1 ton of wire.

Ⅱ. Technical Parameters

The RKM Barbed Wire Machine comes in three models—CS-A, CS-B, and CS-C. Each model is tailored to different production needs and wire specifications. The table below outlines the key technical specifications for each model:

Items CS-A CS-B CS-C
Main Wire Diameter 1.5-3.0mm (Max. 800 MPa) 2.0-3.0mm (Max. 1700 MPa) 1.6-2.8mm (Max. 1300 MPa)
Barbed Wire Diameter 1.6-2.8mm (Max. 700 MPa) 1.6-2.8mm (Max. 700 MPa) 1.4-2.8mm (Max. 700 MPa)
Barbed Spacing 3”, 4”, 5” 4”, 5” 4”, 5”, 6”
Motor Power 2.2kw 2.2kw 2.2kw
Twisted Number 3-5 7
Raw Material Galvanized or PVC-coated wire Galvanized wire Galvanized wire
Production Capacity 150 kg/hr (2.8mm wire), 80 kg/hr (1.8mm wire) 50 kg/hr (2.0mm wire) 80 kg/hr (2.0mm wire)

Each model provides versatility in barbed wire spacing, wire diameter options, and motor power, allowing customers to select the machine that aligns best with their production demands.

Ⅲ. Key Features of RKM Barbed Wire Machines

1. Enhanced Safety Features

Safety is a priority in RKM’s barbed wire machines. The machines come equipped with steel covers on driving shafts to protect operators from moving parts during operation, ensuring a safer work environment.

2. Precision Control with Integrated Counter System

The integrated counter system helps operators monitor the number of barbs produced, making it easy to calculate the length of the finished barbed wire. This feature is particularly useful for projects that require precise measurements and helps minimize waste.

3. Smooth Operation with Guiding System

RKM’s machines are designed with a guiding system that prevents wire snarls, maintains smooth wire feeding, and reduces interruptions during production. This ensures a higher output rate and minimal maintenance requirements.

4. Adjustable Barbed Spacing

The barbed spacing is customizable, allowing for adjustments to fit project specifications. By using the red roller, operators can set barbed spacing to 3, 4, 5, or 6 inches depending on the model. This flexibility is advantageous for manufacturers producing barbed wire for different applications.

5. Automated Wire Feeding Options

To optimize production efficiency, RKM offers two wire feeding options:

  • Standard Wire Spools: Suitable for standard operations with a maximum load of 200 kg.
  • Pull-Up Pay-Off Reel: For larger production runs, the pull-up reel can handle up to 1 ton of wire, reducing the frequency of spool changes and improving overall efficiency.

Ⅳ. Advantages of RKM Barbed Wire Machines

Choosing an RKM Barbed Wire Machine provides several operational and production advantages:

  1. High Efficiency: With an automated wire feeding system, adjustable barbed spacing, and continuous operation, these machines enable high production rates.
  2. Durable Construction: Made with hard steel for twisting and cutting, RKM machines are built for longevity and can withstand heavy-duty operations without compromising performance.
  3. Versatile Material Handling: Each model is capable of handling galvanized and PVC-coated wire, making them suitable for a wide range of fencing applications.
  4. Consistent Product Quality: The guiding system, counter, and adjustable barbed spacing ensure that the final product meets quality standards with consistent barb placement and uniform wire tension.

Ⅴ. Machine Photos and Installation Examples

Our machines are installed in various customer facilities worldwide, producing finished barbed wire that meets stringent quality and durability standards. Below are some examples of RKM Barbed Wire Machines in action, highlighting their robust construction and efficient production capabilities.

Sample Finished Product:

  • Finished Barbed Wire: Strong, durable, and adjustable to different barb spacings, ideal for high-security applications and general fencing needs.

Ⅵ. RKM’s Commitment to Quality and Customer Satisfaction

RKM takes pride in delivering Barbed Wire Machine Solutions that are efficient, reliable, and tailored to meet diverse customer requirements. Our machines are designed to streamline barbed wire production, allowing businesses to maximize output while maintaining quality. Whether you are looking for a machine to handle smaller production volumes or a heavy-duty model for industrial-scale operations, RKM offers the flexibility and support needed to meet your needs.

For additional assistance, customization requests, or consultation, feel free to reach out to our team. At RKM, we are committed to helping our customers select the best machine model for their specific production requirements.
